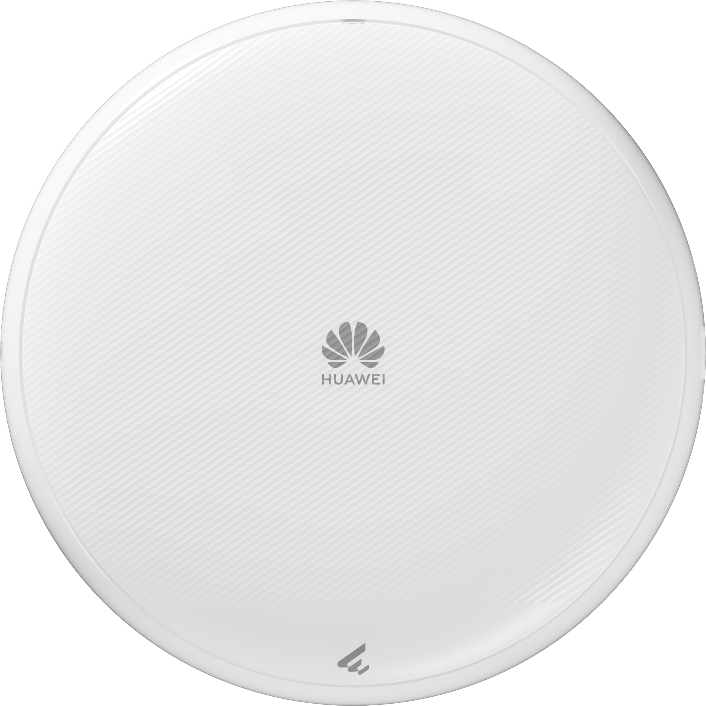

Huawei eKit AP673 Wi-Fi 7 Tri-Band Indoor Access Point with 5GE Port

Tri-Band Wi-Fi 7 Power With 6 GHz and 320 MHz

The Huawei eKit AP673 is a high-performance tri-band Wi-Fi 7 access point for busy offices, hotels, classrooms, conference rooms and premium retail spaces. Three radios on 2.4, 5 and 6 GHz combine for a device rate of up to 13.66 Gbps, with a 4x4 6 GHz radio using 320 MHz channels for exceptional speed and low latency.

Wi-Fi 7 technologies including 4096-QAM and multi-link operation (MLO) let compatible devices transfer more data and switch between bands seamlessly. The access point supports up to 1,024 users, with 300 recommended, and its smart antennas reach an optimal signal distance of about 40 metres.

A 5GE uplink port removes wired bottlenecks, and a second GE port plus a USB port add flexibility. Power comes from 802.3at/af PoE or a 12V DC adapter, and the 220 mm round unit installs on walls, ceilings or junction boxes, with management through Huawei's eKit app and cloud platform.

Key Features

• Tri-band Wi-Fi 7: 2.4, 5 and 6 GHz radios
• Up to 13.66 Gbps: 4x4 6 GHz radio with 320 MHz channels
• 4096-QAM and MLO: faster, more reliable connections
• 5GE uplink: multi-gigabit wired backhaul plus an extra GE port
• Up to 1,024 users: 300 recommended for high-density areas
• 40 m optimal signal distance: strong coverage from smart antennas

Specifications

• Model: AP673 (part number 50087291)
• Wi-Fi standard: 2.4 GHz 802.11b/g/n/ax/be; 5 GHz 802.11a/n/ac/ac Wave 2/ax/be; 6 GHz 802.11a/ax/be
• Radios: 3 (2.4 GHz 2x2, 5 GHz 2x2, 6 GHz 4x4)
• Device rate: 13.66 Gbps
• Max channel bandwidth: 40 MHz (2.4 GHz), 80 MHz (5 GHz), 320 MHz (6 GHz)
• Max transmit power: 23 dBm combined (2.4 and 5 GHz), 26 dBm combined (6 GHz)
• Antennas: built-in smart antennas, 4 dBi (2.4 GHz) / 5 dBi (5 and 6 GHz) peak
• Max users: 1,024 (300 recommended)
• Optimal signal distance: 40 m

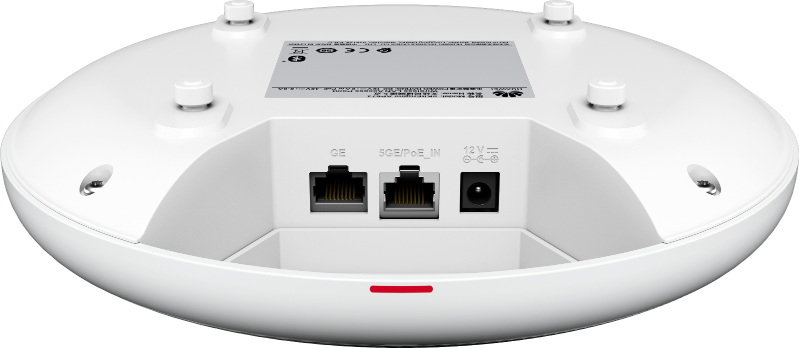

• Ports: 1x 5GE RJ45 (100M/1G/2.5G/5G), 1x GE RJ45, 1x USB
• Power: PoE 802.3at/af or 12V DC, 21.1W max consumption (excluding USB)
• Dimensions: Ø220 x 45 mm
• Weight: 0.745 kg
• Installation: wall, ceiling or junction box
• Operating temperature: -10 to 50°C
