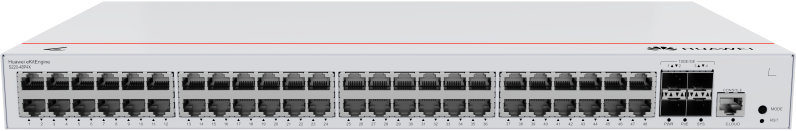

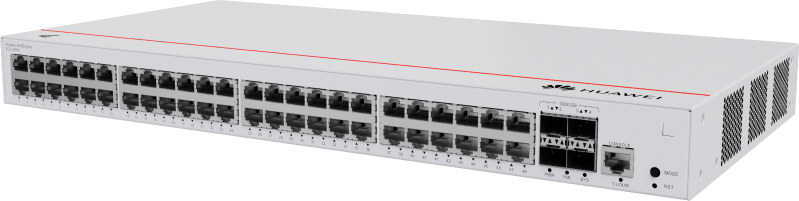

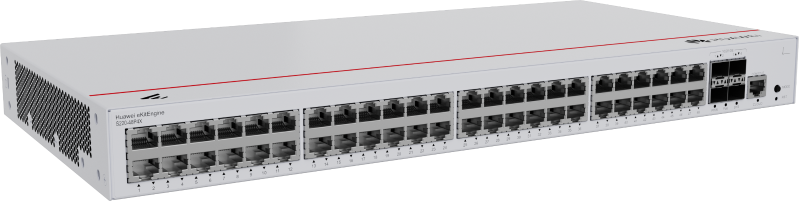

Huawei eKit S220-48P4X 48-Port Gigabit PoE+ Switch with 4x 10G SFP+
Couldn't load pickup availability
48 PoE+ Ports With 10G Uplinks for Large Deployments
The Huawei eKit S220-48P4X is a high-density PoE+ switch for offices, hotels, schools and surveillance systems with lots of powered devices. It provides 48 Gigabit RJ45 ports, all supporting PoE+, so access points, IP cameras and VoIP phones can draw power and data over one cable, backed by a total PoE budget of 380W.
Four 10GE SFP+ ports deliver fast fibre or DAC uplinks to your core network or gateway. With 176 Gbit/s of switching capacity and a 131 Mpps forwarding rate, the switch handles heavy traffic from dozens of devices without slowing down.
The 1U metal chassis includes a built-in AC power supply with ±6 kV surge protection and two intelligent fan modules that adjust speed to the load. It can be mounted in a 19" rack, placed on a desk or fixed to a wall.
Key Features
- 48 Gigabit PoE+ ports: power and connect dozens of devices
- 380W PoE budget: run APs, cameras and phones from one switch
- 4x 10GE SFP+ uplinks: high-speed connections to the core
- 176 Gbit/s switching capacity: 131 Mpps forwarding rate
- Built-in AC power: with ±6 kV surge protection
- Smart fan control: intelligent speed adjustment
Specifications
- Model: S220-48P4X (part number 98012378)
- RJ45 ports: 48x GE (10/100/1000M), all PoE+
- SFP+ ports: 4x 10GE (10G/1G)
- Total PoE budget: 380W
- Switching capacity: 176 Gbit/s
- Packet forwarding rate: 131 Mpps
- Power supply: built-in AC, 90–290V AC (45–65 Hz) or 190–290V high-voltage DC
- Power consumption: 49.44W typical; 64.7W max without PoE; 462.8W max at full PoE load
- Surge protection: ±6 kV differential and common mode
- Cooling: 2 built-in fan modules, intelligent speed adjustment, left-to-right airflow
- Chassis: metal, 1U
- Dimensions: 43.6 x 442 x 220 mm
- Weight: 3.24 kg
- Installation: rack, desk or wall
- Operating temperature: -5 to 50°C
