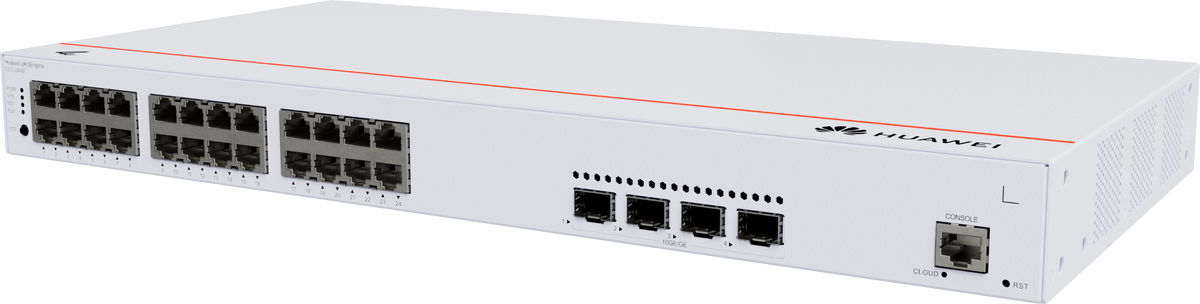

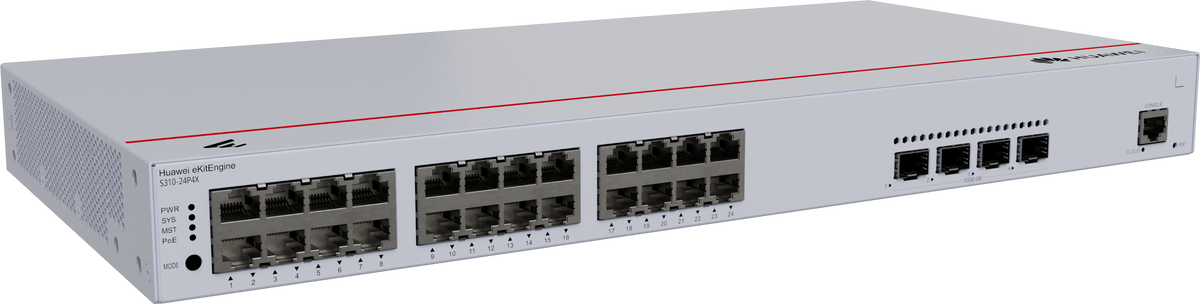

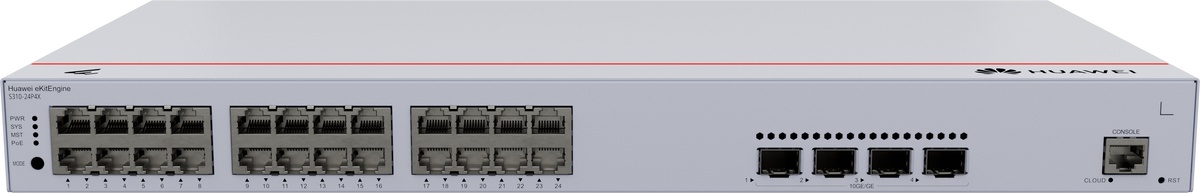

Huawei eKit S310-24P4X 24-Port Gigabit PoE+ Switch with 4x 10G SFP+
Couldn't load pickup availability
Stackable 24-Port PoE+ Switching With 400W of Power
The Huawei eKit S310-24P4X is a 24-port PoE+ switch built for small and medium businesses that need reliable power and connectivity for access points, IP cameras and IP phones. Every one of its 24 Gigabit RJ45 ports supports PoE+, and a generous 400W total PoE budget keeps a full row of devices running.
Four 10GE SFP+ ports provide high-speed uplinks to gateways, servers or core switches, and the switch delivers 128 Gbit/s of switching capacity with a 96 Mpps forwarding rate. Huawei iStack technology lets you stack up to four switches of the same series and manage them as one, making it easy to expand as the network grows.

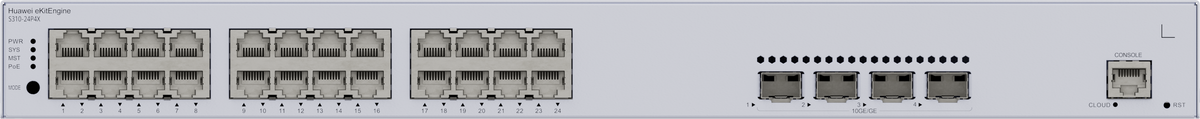

The 1U metal chassis has a built-in AC power supply with ±6 kV surge protection and two intelligent fan modules. It installs in a 19" rack, on a desk or on a wall.
Key Features
- 24 Gigabit PoE+ ports: power APs, cameras and phones
- 400W PoE budget: plenty of headroom for powered devices
- 4x 10GE SFP+ uplinks: fast backbone connections
- iStack: stack up to 4 switches and manage them as one
- 128 Gbit/s switching capacity: 96 Mpps forwarding rate
- Built-in AC power: with ±6 kV surge protection
Specifications
- Model: S310-24P4X (part number 98012382)
- RJ45 ports: 24x GE (10/100/1000M), all PoE+
- SFP+ ports: 4x 10GE (10G/1G)
- Total PoE budget: 400W
- Switching capacity: 128 Gbit/s
- Packet forwarding rate: 96 Mpps
- Stacking: iStack, up to 4 switches of the same series
- Power supply: built-in AC, 90–290V AC (45–65 Hz) or 190–290V high-voltage DC
- Power consumption: 37.12W typical; 44.35W max without PoE; 485.91W max at full PoE load
- Surge protection: ±6 kV differential and common mode
- Cooling: 2 built-in fan modules, intelligent speed adjustment
- Chassis: metal, 1U
- Dimensions: 43.6 x 442 x 220 mm
- Weight: 2.92 kg
- Installation: rack, desk or wall
- Operating temperature: -5 to 50°C
