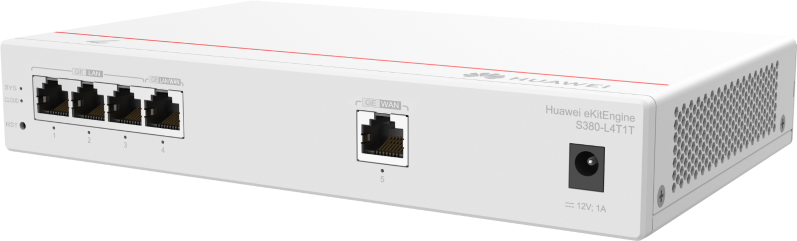

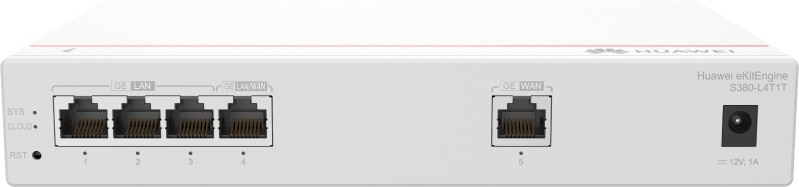

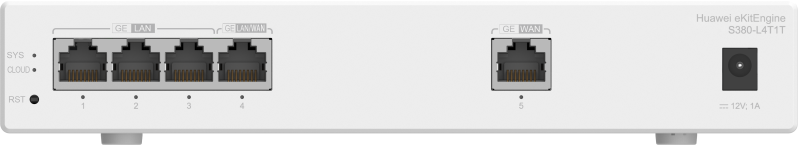

Huawei eKit S380-L4T1T Multi-Service Gateway - 5 GE Ports, Manages 32 APs
Couldn't load pickup availability
One Compact Gateway to Run Your Small-Business Network
The Huawei eKit S380-L4T1T is a compact multi-service gateway that combines routing and Wi-Fi management in a single box, making it ideal for shops, cafes, clinics and small offices. It connects your internet line through a Gigabit WAN port and shares it across four Gigabit LAN ports, supporting up to 200 users with 1 Gbps of egress bandwidth.
Beyond routing, the gateway can centrally manage up to 32 Huawei eKit access points, so you can build a complete wired and wireless network without a separate controller. Its 8 Gbps switching capacity and forwarding rates of 300 Kpps upstream and 420 Kpps downstream keep traffic flowing smoothly.
The metal chassis uses fanless natural cooling for completely silent operation and draws only about 6W. It sits on a desk or mounts on a wall, and is powered by the included 12V adapter with ±6 kV surge protection.
Key Features
- Multi-service gateway: routing plus centralised AP management
- Manages up to 32 APs: no separate wireless controller needed
- 200 users: suited to small businesses and branches
- 1 GE WAN + 4 GE LAN: Gigabit wired connectivity
- Fanless metal design: silent, durable and energy-efficient
- Desk or wall mounting: fits any small network space
Specifications
- Model: S380-L4T1T (part number 98012177)
- Ports: 5x GE RJ45 (1 WAN + 4 LAN), 10/100/1000M
- Managed APs: 32
- Maximum users: 200
- Egress bandwidth: 1 Gbps
- Switching capacity: 8 Gbps
- Packet forwarding rate: 300 Kpps upload, 420 Kpps download
- Power supply: external power adapter, 90–264V AC input, 12V DC output
- Power consumption: 5.99W typical, 6.11W max
- Surge protection: ±6 kV (power adapter)
- Cooling: natural heat dissipation (fanless)
- Chassis: metal
- Dimensions: 35 x 210 x 130 mm
- Weight: 0.8 kg
- Installation: desk or wall
- Operating temperature: 0 to 40°C
