Huawei PAC600S12-PB 600W AC & 240V DC Hot-Swappable Switch Power Module
Couldn't load pickup availability
Reliable, Hot-Swappable 600W Power for CloudEngine Switches

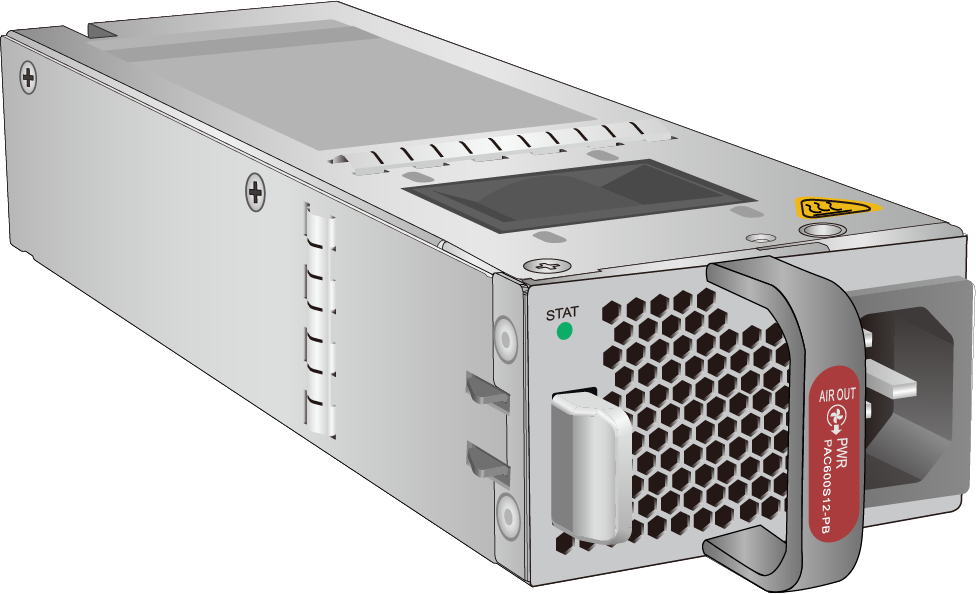

The Huawei PAC600S12-PB is a 600W pluggable power module designed for Huawei CloudEngine campus switches that use 66 mm-wide power slots. It accepts both standard AC mains and 240V high-voltage DC input and delivers a stable 12V / 50A output, making it a dependable primary or redundant power source for core and aggregation switches.
Installing a second module gives your switch power redundancy, and because the unit is hot-swappable it can be replaced without shutting down the network. A full set of protections, including input under/overvoltage, input overcurrent, output current limiting, output overvoltage, short-circuit and overtemperature protection, keeps both the module and the switch safe.
The module is cooled by its own built-in fan with exhaust on the power-panel side, and a front STAT indicator shows at a glance whether output is normal. Please confirm your switch model is on the compatibility list below before ordering.
Key Features
- 600W rated output: 12V at 50A
- AC and 240V DC input: flexible power sources
- Hot-swappable: replace without interrupting the switch
- Redundancy ready: pair two modules for backup power
- Comprehensive protection: over/undervoltage, overcurrent, short-circuit and overtemperature
- Built-in fan cooling: power-panel side exhaust airflow
Specifications
- Model: PAC600S12-PB (part number 02313BUS)
- Description: 600W AC & 240V DC power module, 66 mm width case, power-panel side exhaust
- Rated input: 100–240V AC, 50/60 Hz; 240V high-voltage DC
- Input voltage range: 90–290V AC (45–65 Hz); 190–290V DC
- Max input current: 8A (100–240V AC), 4A (240V DC)
- Rated output: 12V, 50A, 600W
- Number of inputs: 1
- Cooling: built-in fan
- Hot swapping: supported
- Indicator: STAT power status LED
- Dimensions: 39.6 x 66 x 215 mm
- Weight: 1 kg
- Compatible switches: Huawei CloudEngine S6730-H-V2 (S6730-H28X6CZ-V2/-TV2, S6730-H48X6CZ-V2/-TV2, S6730-H6FX4Y2CZ-V2), S6730E-H6FX4Y2CZ-V2, S6750-H48X8C, S6750-H48Y8C, S6750-S16X10Y2CZ, S6750-S16X8YZ, S6750-S24T16X8Y2CZ, S6750E-S16X10Y2CZ, S6750E-S24T16X8Y2CZ
