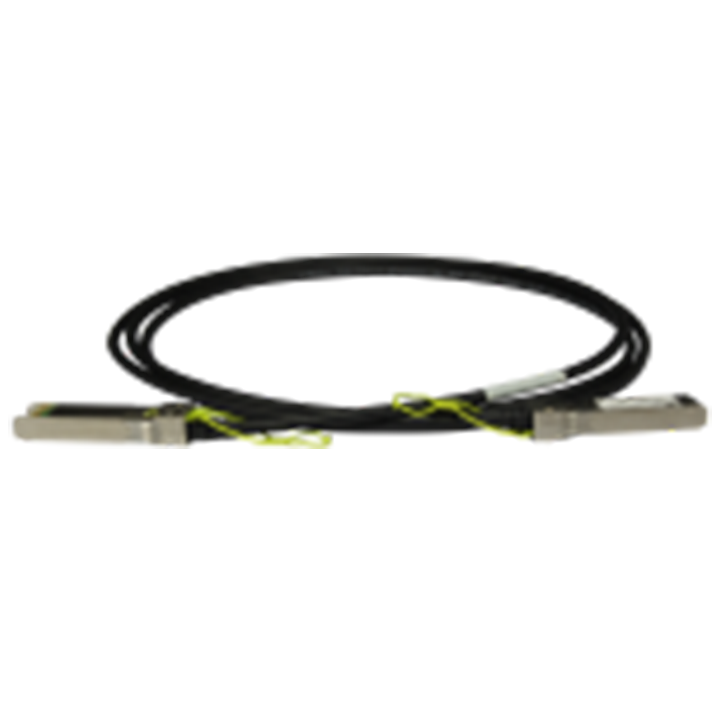

Huawei SFP-10G-CU3M 10G SFP+ Passive Direct Attach Copper Cable (3m)

Simple, Low-Cost 10G Links Between Nearby Devices

The Huawei SFP-10G-CU3M is a 3-metre high-speed direct attach copper (DAC) cable with an SFP+ connector permanently fitted at each end. It is the easiest way to create 10 Gbit/s connections between switches, servers, storage and firewalls within the same rack or neighbouring racks, without buying separate optical modules and fibre patch cords.

Because it is a passive cable, it needs no extra power and adds virtually no latency, while offering a lower cost per link than optical transceivers. Simply plug each end into an SFP+ port, such as the 10GE uplinks on Huawei eKit and CloudEngine switches, for an instant high-speed connection.

Designed for indoor use, the cable has a 25 mm bend radius, making it easy to route neatly in racks and cable managers.

Key Features

• 10 Gbit/s SFP+ to SFP+: high-speed switch and server interconnects
• 3 m length: ideal for in-rack and adjacent-rack links
• Passive copper design: no power required, very low latency
• Plug-and-play: no separate transceivers or fibre needed
• Cost-effective: cheaper than optical modules for short runs
• Flexible routing: 25 mm bend radius

Specifications

• Model: SFP-10G-CU3M (part number 02310MUP)
• Type: high-speed direct-attach cable (DAC)
• Data rate: 10G
• Connectors: SFP+ to SFP+
• Cable length: 3 m (9.84 ft)
• Electrical attribute: passive
• Bend radius: 25 mm
• Minimum routing clearance: 60 mm
• Usage: indoor
