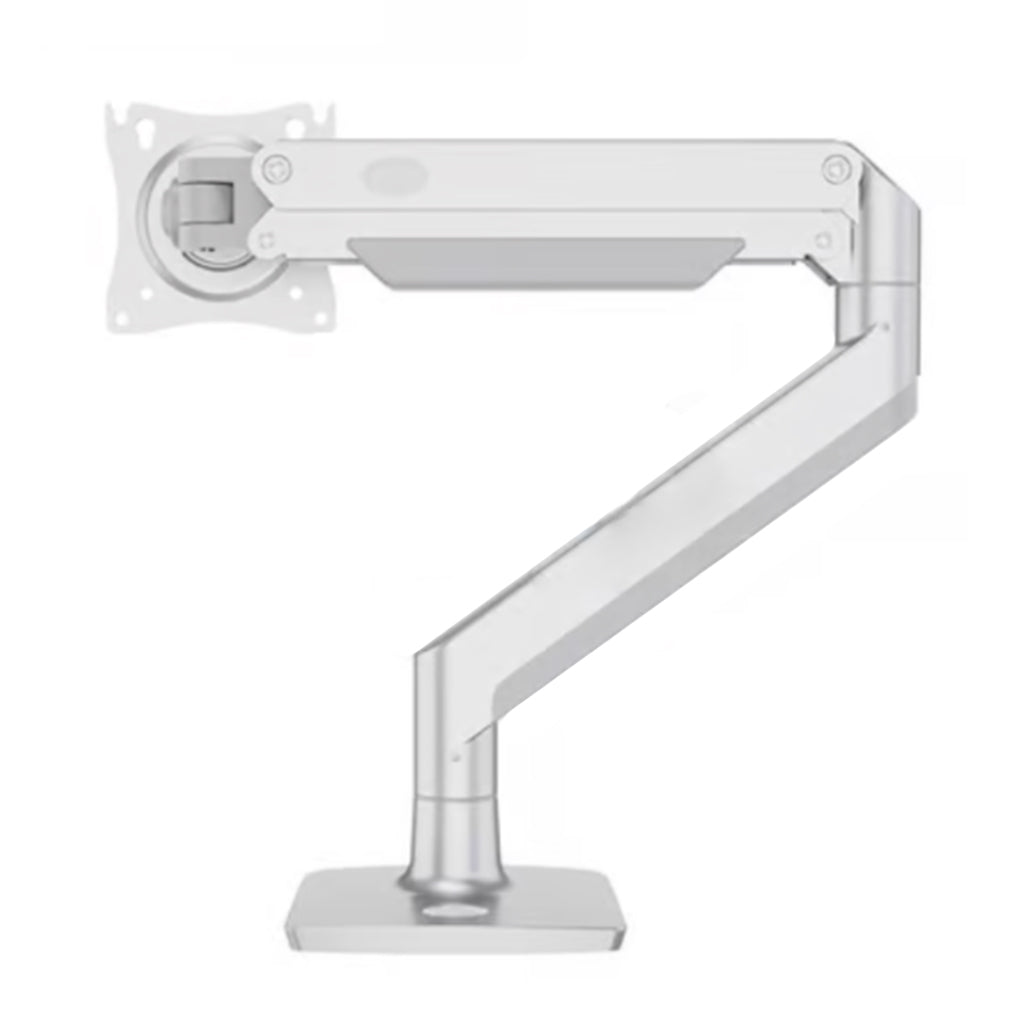

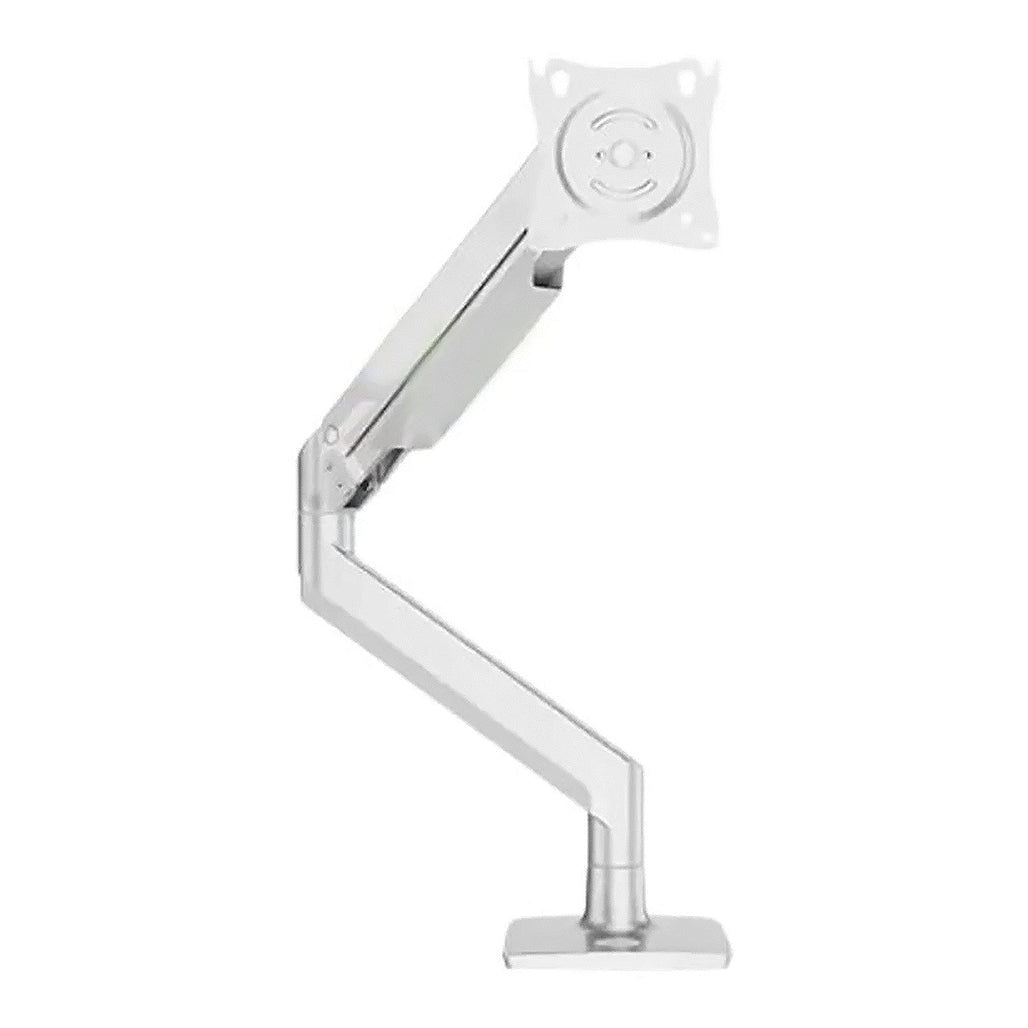

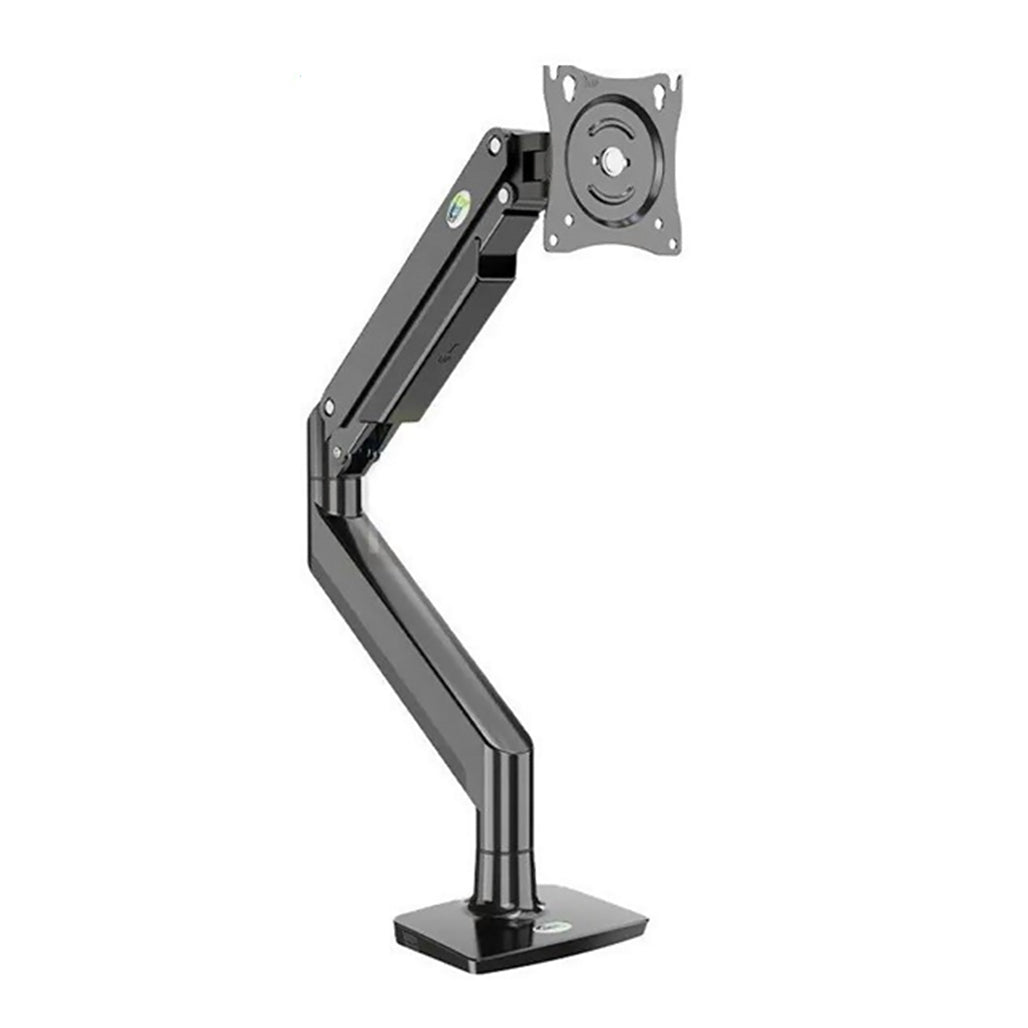

Kaloc DS160 Gas Spring Single Monitor Arm (22"–40")

Built for the Big Screens

Most desk arms top out around 32"; the Kaloc DS160 is built specifically for the larger end of the market, supporting 22"–40" displays weighing 2–15kg on a single internal gas spring. That spring self-adjusts to the screen's weight, so even a heavy large-format monitor lifts and lowers with light, even pressure instead of fighting a stiff joint.

Height travels across a generous 216mm–618mm range, and tilt covers -50° to +50°, giving plenty of room to kill glare on a big panel or angle it down from a raised position. A 360° swivel handles the rest of the positioning, and the SPCC cold-rolled steel frame is built to hold a large screen steady rather than drift or sag over time.

Cables route through a hidden internal channel, and the base supports both a grommet mount for desks with a cable hole or a clamp mount for desks without one — flexible enough for most setups running a single large display.

• Single Gas Spring: Effortless height adjustment rated for large, heavy screens.
• Wide Weight Range: Supports 2–15kg, covering most 22"–40" monitors.
• Tilt & 360° Swivel: -50° to +50° tilt for glare control at any height.
• Two Mounting Options: Grommet (20–60mm hole) or clamp (<95mm thick, >35mm deep desk edge).

Specifications

• Compatible screen size: 22" – 40"
• Weight capacity: 2 – 15kg
• Adjustment mechanism: Internal gas spring
• Tilt range: -50° to +50°
• Swivel: 360°
• Height adjustment: 216mm – 618mm
• VESA compatibility: 75x75mm & 100x100mm
• Mounting: Grommet (20–60mm hole) or clamp (<95mm thickness, >35mm depth)
• Material: SPCC cold-rolled steel
• Cable management: Hidden internal routing
• Arms: Single monitor
