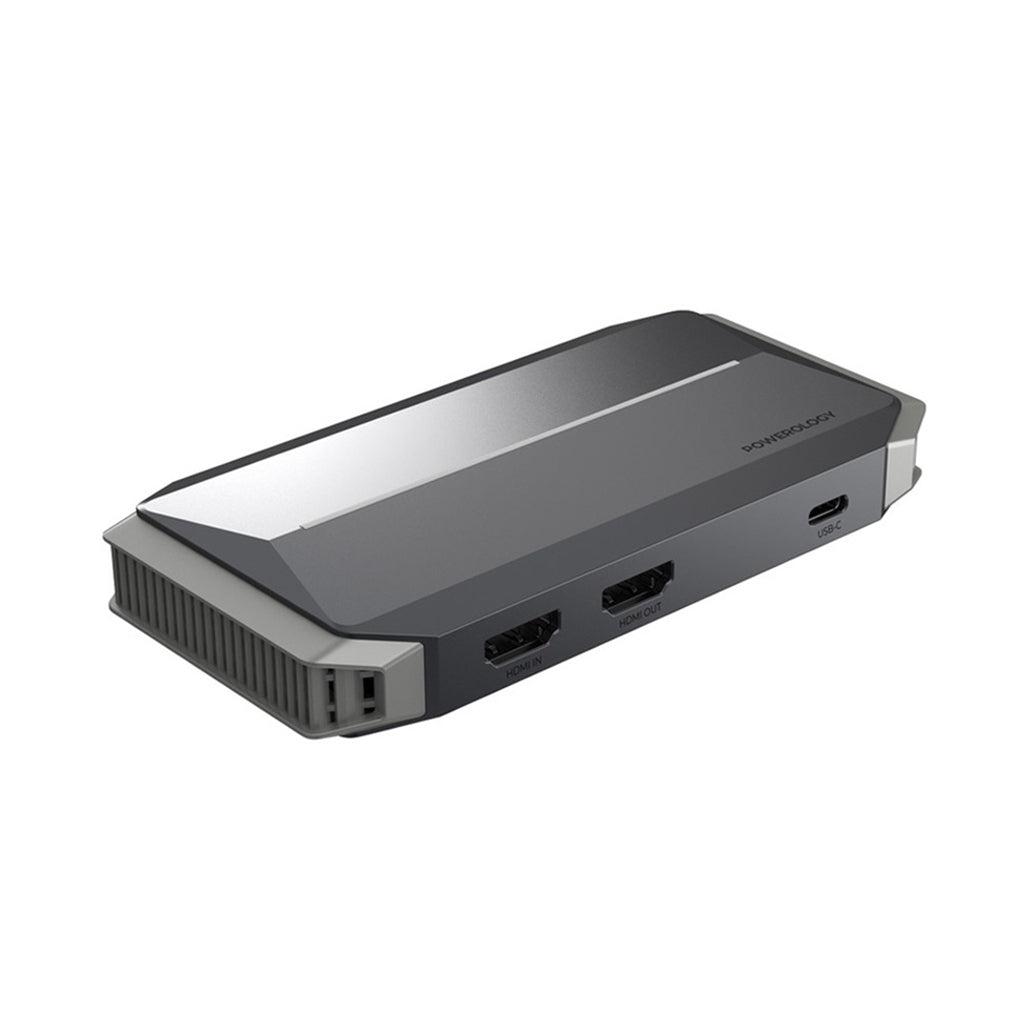

Powerology 4K Capture Card with HDMI 2.0 Loop-Out & 3.5mm Audio

Capture, Monitor and Mix Your Audio Without a Separate Interface

The feature that justifies this card over a basic one is the HDMI loop-out. The signal from your console or camera passes straight through at up to 4K@60Hz to a monitor or TV while a second copy goes to the computer for capture, so you play on an uncompromised display at full refresh and record at the same time — no split between "what you see" and "what gets recorded".

The three 3.5mm ports are the other half of the argument. A microphone input, a line input and an audio output all run at 48KHz 16-bit, which means you can plug a headset mic and an external audio source directly into the card and monitor the mix through headphones, instead of routing everything through a separate audio interface and fighting sync drift in software afterwards.

Capture to the computer runs over USB-C 3.2 Gen1 and outputs 1080p at 60Hz, the resolution most streaming platforms deliver anyway, while the HDMI path keeps your own display at full 4K. It is recognised without drivers by Windows 10 or later and macOS High Sierra 10.13 or later, and works with OBS Studio, XSplit, Potplayer and QuickTime Player. The housing is reinforced ABS and PC, and the HDMI link is rated for runs of up to 30 metres.

Key Features

• HDMI 2.0 loop-out at 4K@60Hz: Play on a full-resolution, full-refresh display while recording at the same time.
• Three 3.5mm audio ports: Mic in, line in and audio out at 48KHz 16-bit — no separate audio interface needed.
• Live headphone monitoring: Hear your own mix as it is captured rather than checking it afterwards.
• 1080p@60Hz USB-C capture: Smooth 60fps recording at the resolution most platforms actually stream.
• Driver-free setup: Appears as a standard camera device on Windows and macOS.
• Up to 30m HDMI range: Enough reach for a camera on the far side of a room or studio.
• Broad software support: OBS Studio, XSplit, Potplayer and QuickTime Player.

Specifications

• HDMI input: HDMI 2.0, 4K@60/50Hz
• HDMI loop-out: 4K@60/50Hz
• USB capture output: 1080p@60Hz over USB-C 3.2 Gen1
• Audio input: 1 x 3.5mm microphone, 1 x 3.5mm line in (48KHz 16-bit)
• Audio output: 1 x 3.5mm (48KHz 16-bit)
• Transmission range: Up to 30 metres
• Enclosure material: ABS + PC
• Operating systems: Windows 10 or later, macOS High Sierra 10.13 or later
• Compatible software: OBS Studio, XSplit, Potplayer, QuickTime Player
• Colour: Black
