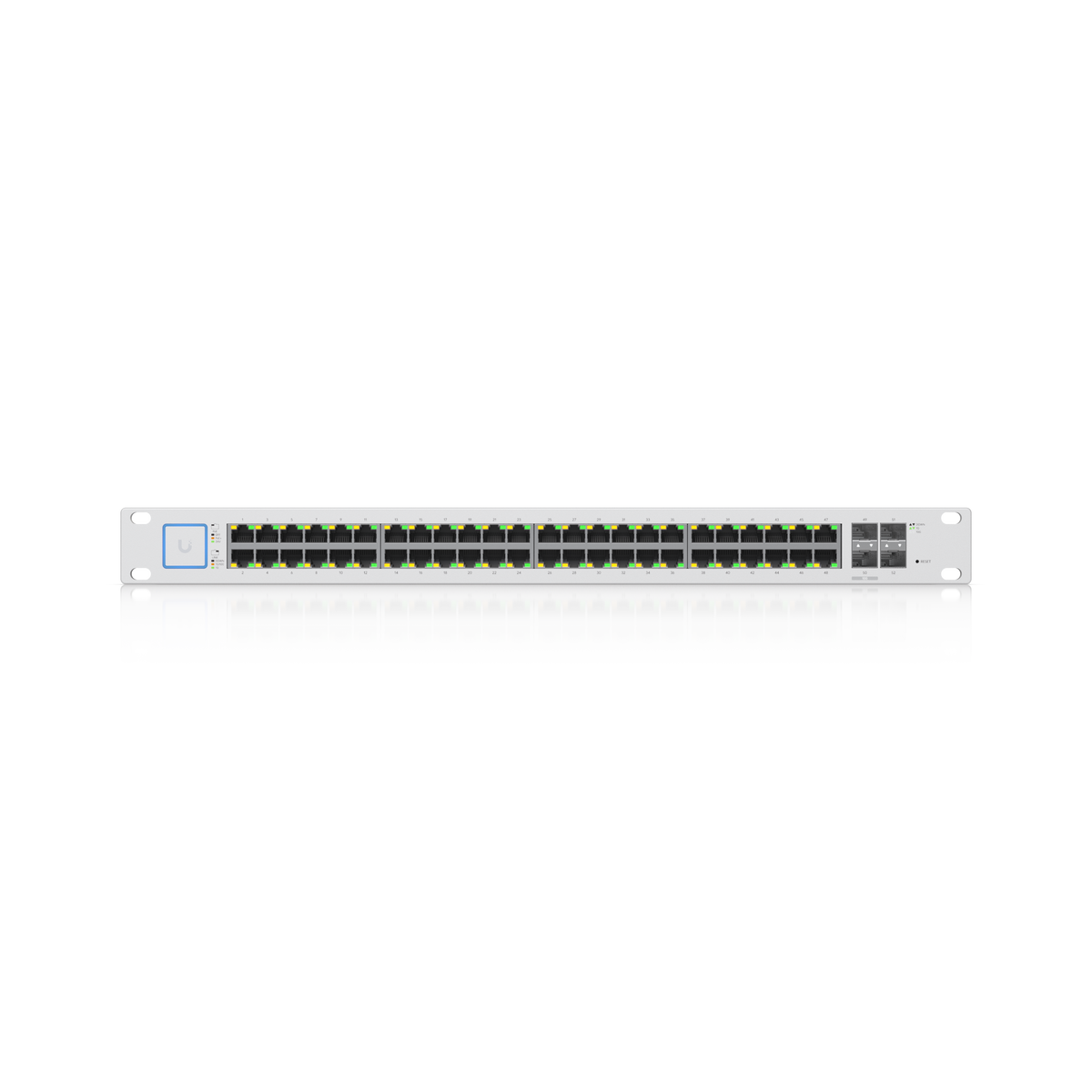

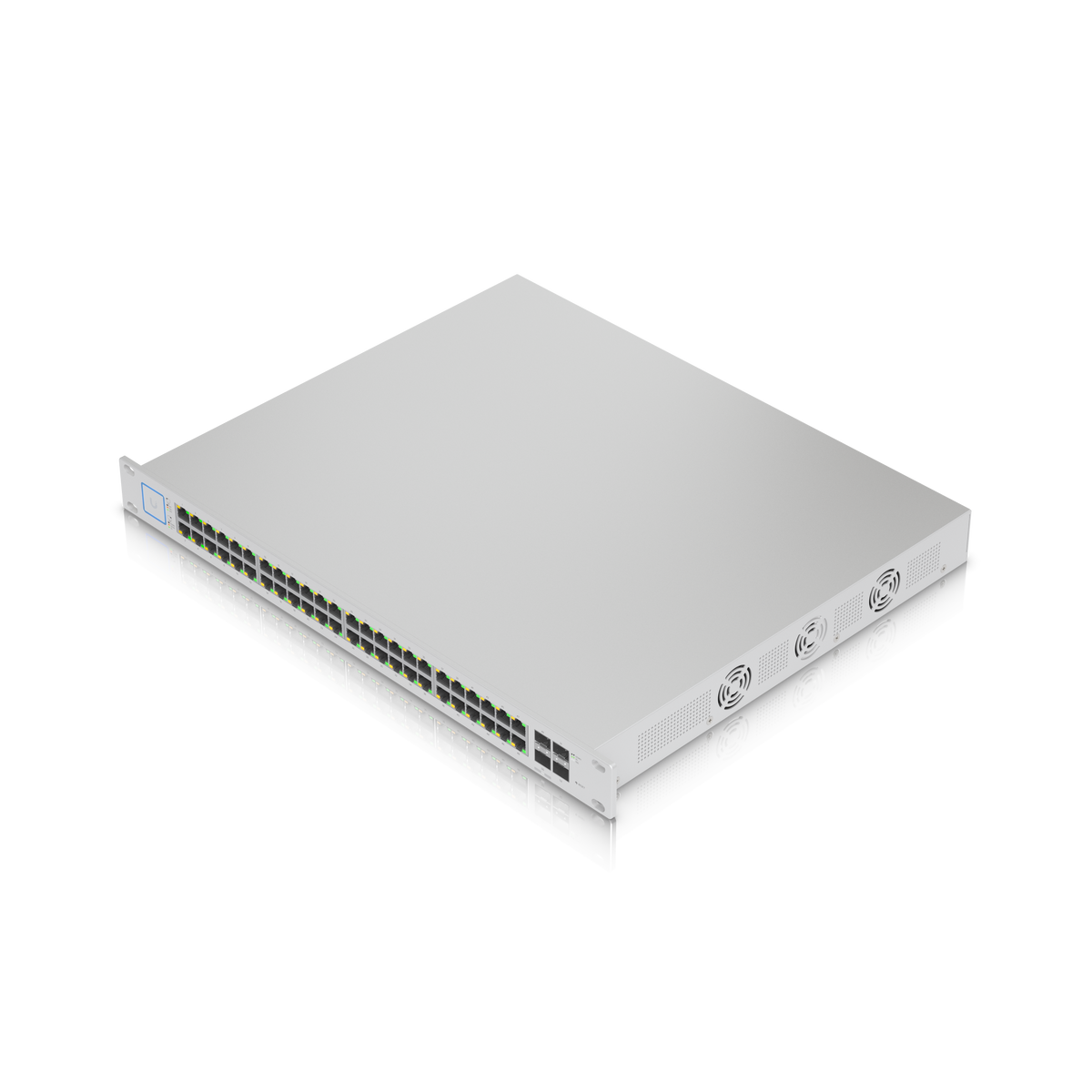

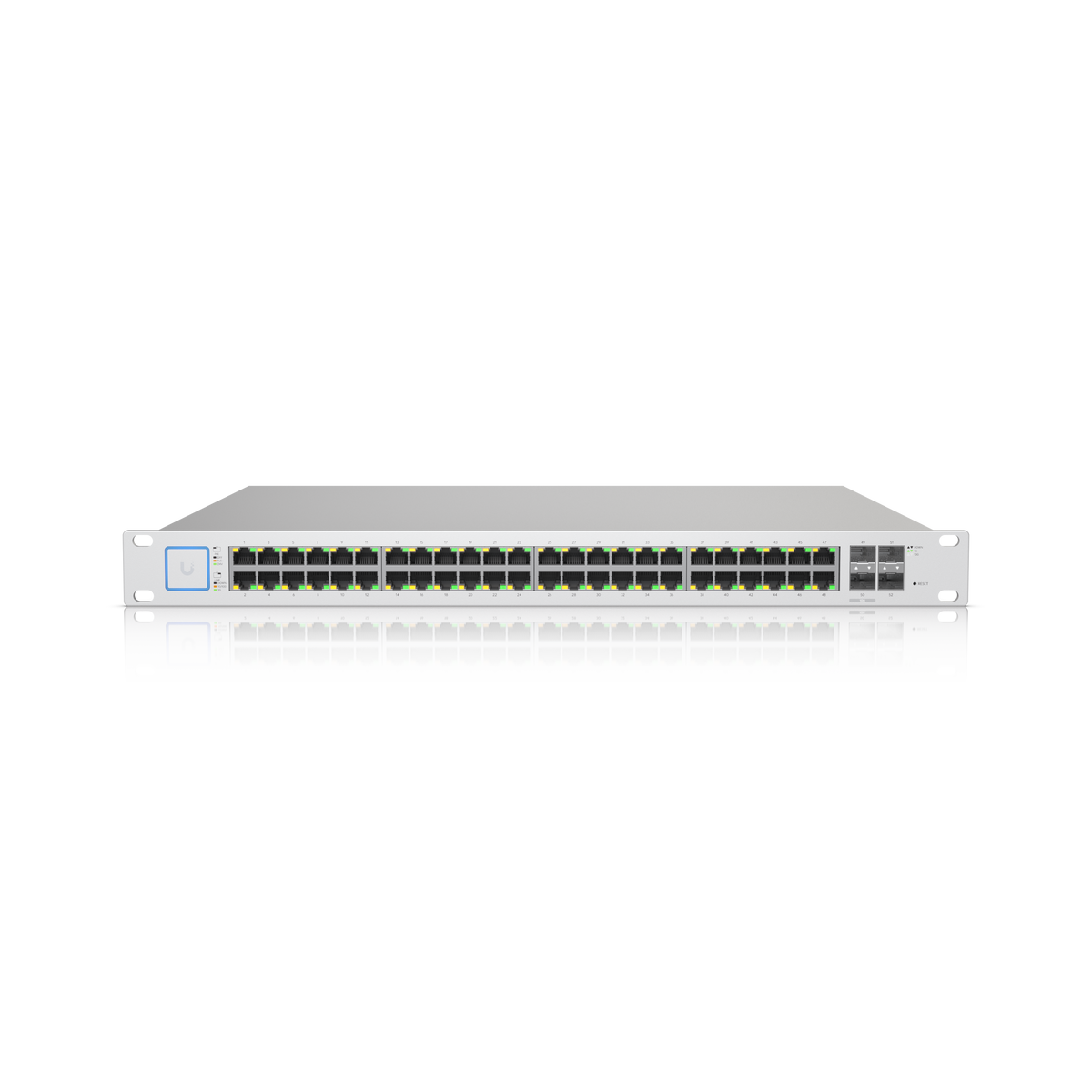

Ubiquiti UniFi Switch 48 PoE (500W) - 48-Port Gigabit PoE+ Managed Switch with 10G SFP+

48 Ports of PoE+ Power for Large Installations

The UniFi Switch 48 PoE (500W) is a 1U rackmount managed switch built for offices, hotels, schools and surveillance systems that need a lot of powered ports in one place. All 48 Gigabit RJ45 ports can supply PoE, supporting both IEEE 802.3af/at PoE+ and 24V passive PoE, so it works with modern access points and cameras as well as older passive-powered equipment.

A 500W total PoE budget, with up to 34.2W available per PoE+ port, keeps dozens of devices running from a single switch. For uplinks, two 10G SFP+ ports connect to your core switch or gateway at high speed, and two additional 1G SFP ports give extra fibre options. With 140 Gbps of switching capacity and a forwarding rate of 104.16 Mpps, it handles heavy traffic without bottlenecks.

The switch is adopted and managed through the UniFi Network application, where you can set VLANs, monitor every port and control PoE per device. Port LEDs show PoE, speed, link and activity at a glance, and the internal power supply keeps the rack tidy.

Key Features

• 48 Gigabit PoE ports: 802.3af/at PoE+ and 24V passive PoE support
• 500W PoE budget: up to 34.2W per PoE+ port
• 2x 10G SFP+ uplinks: fast connections to your core network
• 2x 1G SFP ports: additional fibre connectivity
• 140 Gbps switching capacity: smooth performance under heavy load
• UniFi managed: VLANs, port monitoring and PoE control from one app

Specifications

• Model: US-48-500W
• RJ45 ports: 48x GbE (1G/100M/10M), all PoE capable
• SFP+ ports: 2x 10G SFP+ (10G/1G)
• SFP ports: 2x 1G SFP
• PoE modes: IEEE 802.3af/at PoE+, 24V passive PoE
• Max PoE per port: 34.2W (PoE+), 17W (24V passive)
• Total PoE availability: 500W
• Switching capacity: 140 Gbps
• Non-blocking throughput: 70 Gbps
• Forwarding rate: 104.16 Mpps
• Management: Ethernet in-band, RJ45 serial console (out-of-band)
• LEDs: PoE/speed/link/activity on RJ45 ports, speed/link/activity on SFP ports
• Power supply: internal 500W AC/DC, 100–240V AC, 50/60 Hz
• Max power consumption: 64W excluding PoE, 500W including PoE output
• ESD/EMP protection: air ±24 kV, contact ±24 kV
• Form factor: 1U rackmount
• Dimensions: 485 x 374.6 x 43.7 mm
• Weight: 6.1 kg
• Enclosure: SGCC steel
• Operating temperature: -5 to 40°C
• Operating humidity: 5 to 95% noncondensing
